Callum Multiband Antenna (c) DX Commander
(Youtube channel) and https://www.m0mcx.co.uk/author/m0mcx/
Prototype 2019 0203
Spiderbeam connector – Guying
… Feeding / Alimentation – Ready to go.
Tests 30, 20, 15, 10 et 6 mt / swr 1/1 – 1/3 on bands
***************************
Mai 2019/ May
Embase #2 pour antenne portable/ qsy Canada.
Ready for Canada.. Using a short 6 mts pole.
New base and feeding …. Ground /Plan de sol 2x 4 fils de 5 mètres
using 2×4 wires of 5 mt long .. it’s enough
Nouvelle embase et alimentation antenne multibandes.
The base is blocked with a cuted and slipped tube on the fishing rod.
***************************
Montage de l’embase III
Montage de 4 bandes – 30 20 15 17 mètres ( 12 10 et 6 mètres )
8 wires of 5 mts for ground system
Embase II .. Fil cuivre 1.5 mm ..
Electric coper wire
***************************
Juin 2019 / June
Clip Plastiques / Plastic clips
Embase et « montage tendeur » des fils antenne.
stretched with an elastic thread
***************************

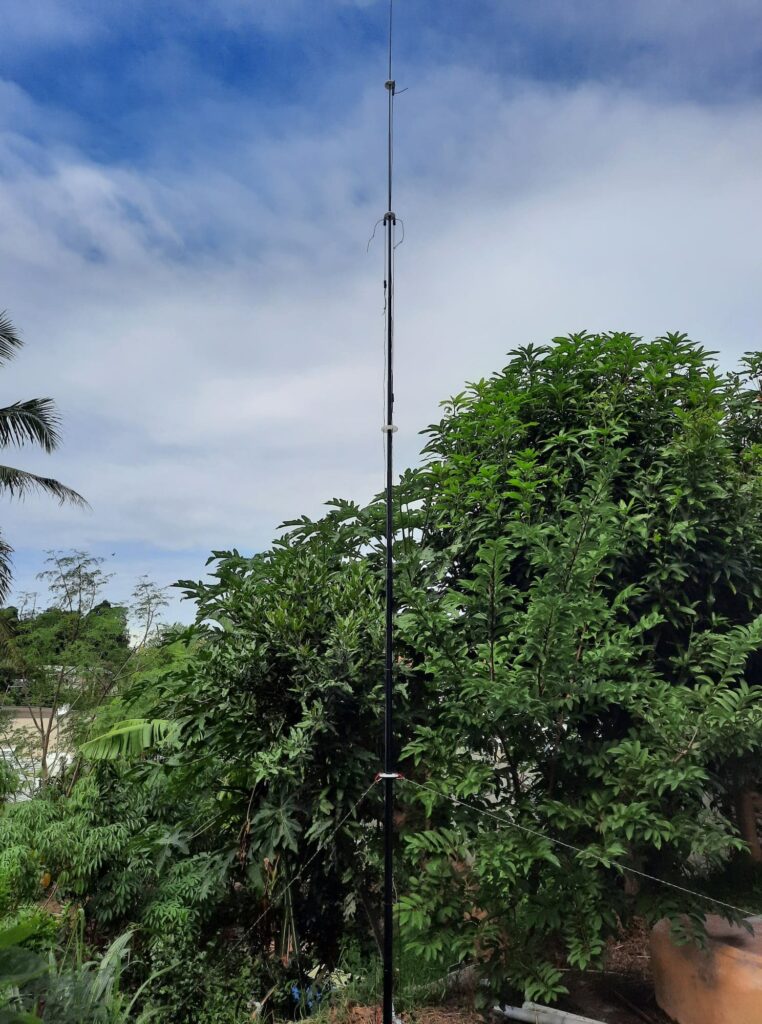

DX Wire 10 mts long pole – with 7 mhz wire.
Ecarteurs ronds doublés pour éviter le mélange de fil
(10 ou 7 mhz et les autres bandes) / Spiderbeam wires
Using plastic spreader (flower pot bottom) to avoid twists.
***************************
Des rallonges pour le 40, 60 et 80 mts
Extensions on 7, 5.3 or 3.5 mhz from 10 mts wire..

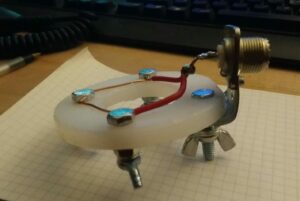

Embases III – 3 bandes
03 / 2020

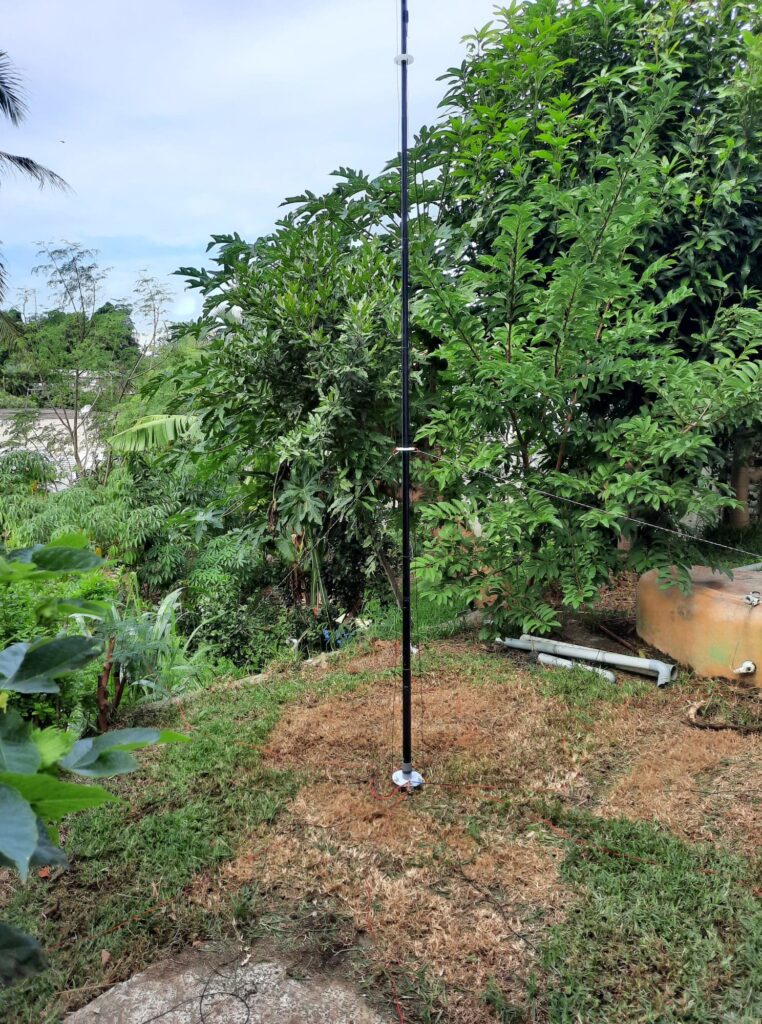

New Caledonia qsy april to june 2022.

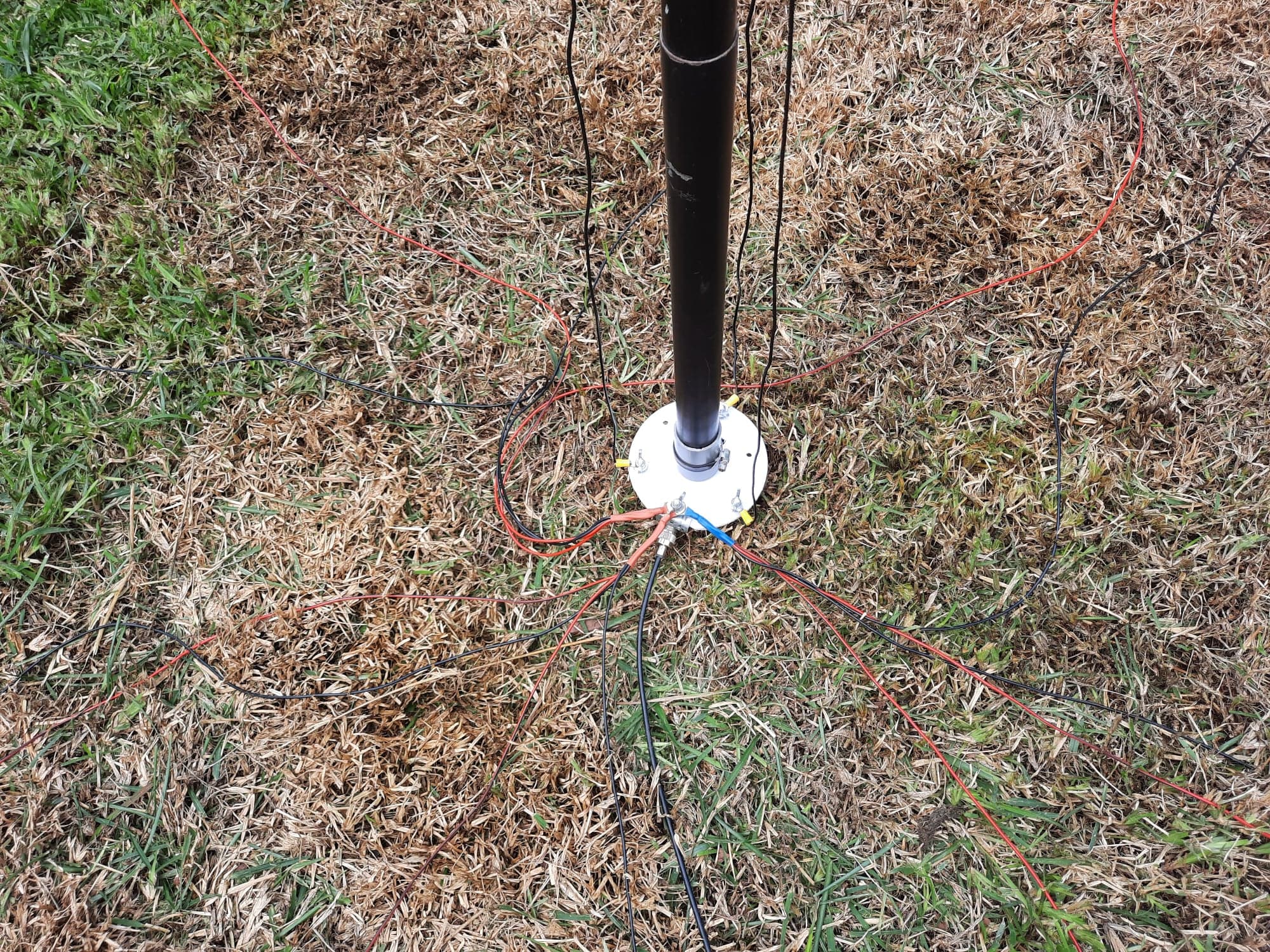

The grass that covers the ground is too thick and does not help the contact between the earth and the radians, SWR 1,7 – 1,9 .. ( Usualy flat ) but it’s doing the job.
***************************
F5NHJ – 20xx
